Trend CDJ300 Craft Dovetail Jig 300mm 1/4 inch Shank

Trend CDJ300 Craft Dovetail Jig 300mm 1/4 inch Shank

Trend Routing Technology
Click For Bigger Image: Trend CDJ300 Craft Dovetail Jig cutting a lapped dovetail joint.Click For Bigger Image: Drawers made by using the Trend CDJ300 Craft Dovetail Jig.Click For Bigger Image: Box joint made by using the Trend CDJ300 Craft Dovetail Jig.Click For Bigger Image: Lapped dovetail joint made by using the Trend CDJ300 Craft Dovetail Jig.
Click For Bigger Image: Through dovetail joint made by using the Trend CDJ300 Craft Dovetail Jig.Click For Bigger Image: 32mm centre dowelling made by using the Trend CDJ300 Craft Dovetail Jig.Click For Bigger Image: 104 degree dovetail cutter that comes with the Trend CDJ300 Craft Dovetail Jig.Click For Bigger Image: Trend CDJ300 Craft Dovetail Jig 15.8mm guide bush.

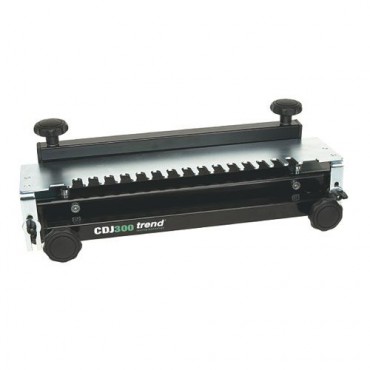

Click For Bigger Image: Trend CDJ300 Craft Dovetail Jig.
Trend CDJ300 Craft Dovetail Jig 300mm 1/4 inch Shank£172.61 Inc VAT£143.84 Ex VAT
Product Description:

The Trend 300mm Craft Dovetail Jig

Product Reference: CDJ300

The Trend Dovetail Jig, accurate and easy to use for a variety of elegant dovetail joints.

  • Cuts 12.7mm (1/2 inch) wide half blind dovetails or rebated dovetails in one operation.
  • Precision made laser cut zinc plated steel template with packing piece.
  • A Unibase and fine height adjuster may be required for certain makes of router.
  • A range of accessory templates are available for box joint, dowel and through dovetails.

Comes with:

  • 1 x 1/4" Shank TCT 104 degree dovetail cutter
  • 1 x 15.8mm Guide bush

Router and fine height adjuster not included.

Dimensions:
Rating = Craftsman
Cutter Shank = 1/4 inch
Dovetail size = 12.7 mm
Workpiece width max. = 300 mm
Workpiece thickness min. = 12 mm
Workpiece thickness max. = 25 mm
Guide bush size = 15.8 mm
Router base dia. max = 180 mm

How to use the Trend Dovetail Jig.

Similar products can be found in these categories:
Trend Woodworking Tools >Trend Router Jigs > Trend Dovetail Jig CDJ300
Power Tools & Accessories >Router Jigs & Tables > Dovetail Jigs
All Trend Routing & Woodworking Products
Accessories:
Trend CDJ300/05 Craft Dovetail 300mm 1/2 Through for the CDJ300Trend CDJ300/05 Craft Dovetail 300mm 1/2 Through for the CDJ300£118.66 Inc VAT   £98.88 Ex VAT
Trend CDJ300/03 Craft Dovetail 300mm 8mm Comb Box for the CDJ300Trend CDJ300/03 Craft Dovetail 300mm 8mm Comb Box for the CDJ300£77.18 Inc VAT   £64.31 Ex VAT
Trend CDJ300/02 Craft Dovetail 300mm 1/2 Comb Box for the CDJ300Trend CDJ300/02 Craft Dovetail 300mm 1/2 Comb Box for the CDJ300£77.18 Inc VAT   £64.31 Ex VAT
Trend CDJ300/01 Craft Dovetail 300mm 1/4 Half Blind for the CDJ300Trend CDJ300/01 Craft Dovetail 300mm 1/4 Half Blind for the CDJ300£72.63 Inc VAT   £60.53 Ex VAT
Trend WP-CDJ300/63 Edge Guide 16.4mm Diameter x 6mm Violet for the CDJ300Trend WP-CDJ300/63 Edge Guide 16.4mm Diameter x 6mm Violet for the CDJ300£5.58 Inc VAT   £4.65 Ex VAT
Trend WP-CDJ300/58 Edge Guide 21.9mm Diameter x 6mm Brown for the CDJ300Trend WP-CDJ300/58 Edge Guide 21.9mm Diameter x 6mm Brown for the CDJ300£5.58 Inc VAT   £4.65 Ex VAT
Trend WP-CDJ300/42 Edge Guide 13mm Diameter x 6mm Grey for the CDJ300Trend WP-CDJ300/42 Edge Guide 13mm Diameter x 6mm Grey for the CDJ300£5.58 Inc VAT   £4.65 Ex VAT
Trend WP-CDJ300/41 Edge Guide 11.5mm Dia x 6mm Grey for the CDJ300Trend WP-CDJ300/41 Edge Guide 11.5mm Dia x 6mm Grey for the CDJ300£5.58 Inc VAT   £4.65 Ex VAT
Trend WP-CDJ300/39 Template Dowel 32mm for the CDJ300Trend WP-CDJ300/39 Template Dowel 32mm for the CDJ300£55.14 Inc VAT   £45.95 Ex VAT
Trend WP-CDJ300/37A Edge Guide 21mm Diameter x 25mm Blue for the CDJ300Trend WP-CDJ300/37A Edge Guide 21mm Diameter x 25mm Blue for the CDJ300£5.58 Inc VAT   £4.65 Ex VAT
Trend WP-CDJ300/37 Edge Guide 14mm Diameter x 6mm Blue for the CDJ300Trend WP-CDJ300/37 Edge Guide 14mm Diameter x 6mm Blue for the CDJ300£5.58 Inc VAT   £4.65 Ex VAT
Trend WP-CDJ300/32 Edge Guide 17.3mm Diameter x 31mm Red for the CDJ300Trend WP-CDJ300/32 Edge Guide 17.3mm Diameter x 31mm Red for the CDJ300£5.58 Inc VAT   £4.65 Ex VAT
Trend WP-CDJ300/27 Edge Guide 28.7mm Diameter x 4mm Green for the CDJ300Trend WP-CDJ300/27 Edge Guide 28.7mm Diameter x 4mm Green for the CDJ300£5.58 Inc VAT   £4.65 Ex VAT
Trend WP-CDJ300/26 Edge Guide 15.8mm Diameter x 6mm Green for the CDJ300Trend WP-CDJ300/26 Edge Guide 15.8mm Diameter x 6mm Green for the CDJ300£5.58 Inc VAT   £4.65 Ex VAT
Trend WP-CDJ300/11 Trend CDJ300 LabelTrend WP-CDJ300/11 Trend CDJ300 Label£2.80 Inc VAT   £2.33 Ex VAT
Trend WP-CDJ300/09 Template Comb Bracket for the CDJ300Trend WP-CDJ300/09 Template Comb Bracket for the CDJ300£6.46 Inc VAT   £5.38 Ex VAT
Trend WP-CDJ300/08 Template Comb 1/2 Lapped for the CDJ300Trend WP-CDJ300/08 Template Comb 1/2 Lapped for the CDJ300£55.14 Inc VAT   £45.95 Ex VAT
Trend WP-CDJ300/02 Clamping Bar with Grip for the CDJ300Trend WP-CDJ300/02 Clamping Bar with Grip for the CDJ300£22.04 Inc VAT   £18.37 Ex VAT
Trend WP-CDJ300/01 Craft Dovetail 300mm Jig Body for the CDJ300Trend WP-CDJ300/01 Craft Dovetail 300mm Jig Body for the CDJ300£99.25 Inc VAT   £82.71 Ex VAT
Trend WP-CDJ300/06 Edge Guide 10mm Diameter x 10mm Silver for the CDJ300Trend WP-CDJ300/06 Edge Guide 10mm Diameter x 10mm Silver for the CDJ300£5.58 Inc VAT   £4.65 Ex VAT
Trend WP-CDJ300/40 Fence Bar Dowel Template for the CDJ300Trend WP-CDJ300/40 Fence Bar Dowel Template for the CDJ300£24.00 Inc VAT   £20.00 Ex VAT
Trend WP-CDJ/13 Craft Dovetail Jig Knob Female M6  Trend WP-CDJ/13 Craft Dovetail Jig Knob Female M6£3.49 Inc VAT   £2.91 Ex VAT
Trend WP-CDJ/04 Washer 8.5mm x 16.5mm x 1.5mm      Trend WP-CDJ/04 Washer 8.5mm x 16.5mm x 1.5mm£1.03 Inc VAT   £0.86 Ex VAT
Trend WP-CDJ/03 Craft Dovetail Jig Clamp Spring    Trend WP-CDJ/03 Craft Dovetail Jig Clamp Spring£1.03 Inc VAT   £0.86 Ex VAT
Trend WP-CDJ/05 Clamp Knob Male M8 x 80mm          Trend WP-CDJ/05 Clamp Knob Male M8 x 80mm£5.58 Inc VAT   £4.65 Ex VAT
Trend WP-CDJ/17 Foot                           Trend WP-CDJ/17 Foot£1.92 Inc VAT   £1.60 Ex VAT
Trend WP-WASH/12 Washer M6 Form C 6.5mm ID x 14mm ODTrend WP-WASH/12 Washer M6 Form C 6.5mm ID x 14mm OD£0.97 Inc VAT   £0.81 Ex VAT
Trend WP-NUT/15 M6 Half Nyloc Hex NutTrend WP-NUT/15 M6 Half Nyloc Hex Nut£0.97 Inc VAT   £0.81 Ex VAT
Trend GB158 Guide Bush 15.8mm x 6mm CDJ300     Trend GB158 Guide Bush 15.8mm x 6mm CDJ300£12.60 Inc VAT   £10.50 Ex VAT
Trend GB158/B Guide Bush 15.8 x 4mm CDJ300       Trend GB158/B Guide Bush 15.8 x 4mm CDJ300£11.43 Inc VAT   £9.52 Ex VAT
Trend WP-SCW/09 M5 x 8mm Countersunk Slot Machine ScrewTrend WP-SCW/09 M5 x 8mm Countersunk Slot Machine Screw£1.02 Inc VAT   £0.85 Ex VAT
Trend C041Ax1/4TC Dovetail A=104 Degree 12.7mm Dia Ex-L Trend C041Ax1/4TC Dovetail Router Cutter A=104 Degree 12.7mm Dia Ex-L£20.74 Inc VAT   £17.28 Ex VAT
Trend GB78 Guide Bush 7.8mm x 4mm CDJ300/01   Trend GB78 Guide Bush 7.8mm x 4mm CDJ300/01£11.43 Inc VAT   £9.52 Ex VAT
Trend UNIBASE Universal SubBase c/w Pins & Bush  Trend UNIBASE Universal Sub Base c/w Pins & Bush£28.50 Inc VAT   £23.75 Ex VAT
Trend C154x1/4TC Dovetail 6.0mm D x 98 DegreeW 2 Flute Trend C154x1/4TC Dovetail Router Cutter 6.0mm D x 98 Degree£20.74 Inc VAT   £17.28 Ex VAT
Trend CDJ600 Craft Dovetail Jig 600mmTrend CDJ600 Craft Dovetail Jig 600mm£327.42 Inc VAT   £272.85 Ex VAT
Trend C012Ax1/4TC CraftPro TCT Straight Router Cutter 8.0mm Dia x 25.0mm Cut   Straight Router Cutter Trend C012Ax1/4TC CraftPro TCT 8.0mm Dia x 25.0mm Cut£18.90 Inc VAT   £15.75 Ex VAT
Trend C021Ax1/4TC CraftPro TCT Straight Router Cutter 12.55mm Dia x25.4mm Cut  Straight Router Cutter Trend C021Ax1/4TC CraftPro TCT 12.55mm Dia x25.4mm Cut£22.91 Inc VAT   £19.09 Ex VAT
Trend C180x1/4TC Dowel Drill 3mm x 14mm Cut         Trend C180x1/4TC Dowel Drill 3mm x 14mm Cut£32.67 Inc VAT   £27.22 Ex VAT
Trend C174x1/4TC Dowel Drill 5mm x 35mm Cut         Trend C174x1/4TC Dowel Drill 5mm x 35mm Cut£19.06 Inc VAT   £15.88 Ex VAT
Trend C175x1/4TC Dowel Drill 6mm x 35mm Cut         Trend C175x1/4TC Dowel Drill 6mm x 35mm Cut£20.74 Inc VAT   £17.28 Ex VAT
Trend C176x1/4TC Dowel Drill 8mm x 35mm Cut         Trend C176x1/4TC Dowel Drill 8mm x 35mm Cut£22.24 Inc VAT   £18.54 Ex VAT
Trend C177x1/4TC Dowel Drill 10mm x 35mm Cut        Trend C177x1/4TC Dowel Drill 10mm x 35mm Cut£23.89 Inc VAT   £19.91 Ex VAT
Trend C178x1/4TC Dovetail 12.7mm x 98 Degree x 20mm CutTrend C178x1/4TC Dovetail Router Cutter12.7mm x 98 Degree x 20mm Cut£22.24 Inc VAT   £18.54 Ex VAT
Trend FHA/001 Fine Height Adjustable T5 & MOF 96(E)     Trend FHA/001 Fine Height Adjustable T5 & MOF 96(E)£20.84 Inc VAT   £17.37 Ex VAT
