Dorma TS72V Door Closer Size 2 - 4 with Silver Finish Square Cover from Cookson Hardware.
Product Reference: TS72V-SIL
The Dorma TS72 door closer is the ideal multi-purpose door closer for all standard door designs and constructions. Without a back-plate, it is particularly easy and quick to fix. The spring strength can be individually adapted to the door size by means of an allen key ensuring optimum performance in every situation.
The Dorma TS72 door closer is Certifre approved (Certificate No. CF 268) for door types ITT 120 and MM/IMM 240.
TS72V Door Closer Features:
One model for all standard doors
Door widths up to 1100 mm
For single- and double-leaf doors
Outstanding value for money
Compact construction with timeless design
TS72V Door Closer Benefits:
For the installer / fabricator:
For the architect / specifier:
For the user:
Constant closing action virtually unaffected by temperature fluctuations
Optimum closing speed adjustment with two regulating valves
Reliable closing with adjustable latching action
Standard & Optional Functions:
Closing speed adjustable in the range 180o - 15o..
Closing speed adjustable in the range 15o - 0o.
Latching action (variable at the arm).
Adjustable closing force.
Self-adjusting backcheck (TS72VBC)
Closing Force Settings:
|up to 850mm
|up to 950mm
|up to 1100mm *

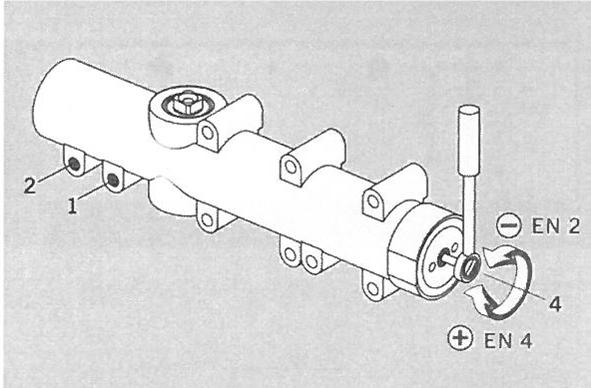

With the TS72 Dorma door closer, the closing force (size setting) for the door width concerned is variable at the adjustment screw located at the end of the TS72 door closer body.
* With parallel arm fixing, the maximum closing force is approx. 20 Nm (for doors up to 950mm)

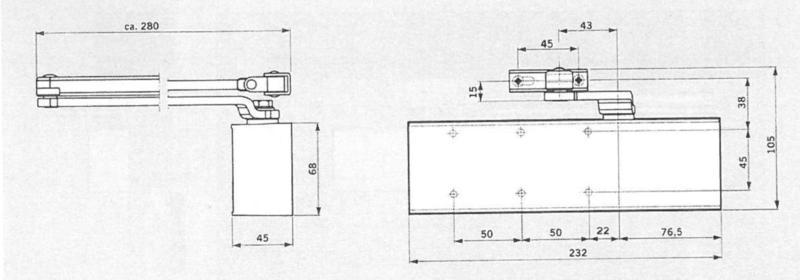

Dorma TS72 Door Closer Dimensions:
The Dorma TS72 door closer is Certifire approved (Certificate No. CF 268
) for door types ITT 120 and MM/IMM 240.
The Dorma TS72 door closer Declaration of Performance can be viewed here - DOP
The Dorma TS72 door closer is CE marked - the certificate can be viewed here - CE
