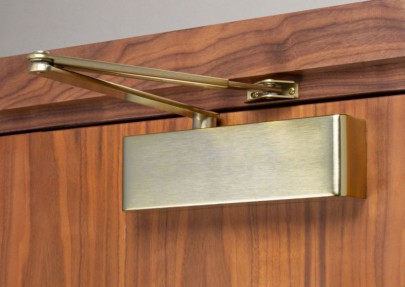

Synergy Door Closer S600 Size 2 - 4 with Backcheck Semi Radius Cover Satin Brass

Synergy Door Closer S600 Size 2 - 4 with Backcheck Semi Radius Cover Satin Brass

Synergy Hardware
Synergy Door Closer S600 Size 2 - 4 with Backcheck Semi Radius Cover Satin Brass£109.30 Inc VAT£91.08 Ex VAT
Product Description:

Synergy Door Closer S600 Size 2 - 4 with Adjustable Backcheck and Semi Radius Cover in Satin Brass Finish.

Product Reference: S600.SB.SR

Synergy door closer, power adjustable by spring and adjustable backcheck. Suitable for doors up to 1100 mm wide and 80kg maximum weight. Certifire approved. Parallel arm bracket is not supplied with this door closer but can be purchased separately if required.

  • Power Adjustable size 2-4 by spring.
  • Architectural Radius edge cover.
  • Suitable for doors up to 1100 mm wide and 80 kg weight when fitted in fig 1 pull and fig 6 applications.
  • Fully tested to the requirements of BS EN 1154.
  • Independent door speed and door latching valves.
  • Certificated for use on latched and unlatched fire doors.
  • For use on single and double leaf doors.
  • Fully adjustable backcheck in both application 1 and 6.
  • For use on single and double leaf doors.
  • Easy installation
  • High corrosion protection
  • Fire tested to BS EN 1634 part 1. Assessed for use on 30, 60, and 120 minutes on timber fire doors.
  • CE marked certificate 2812-CPR-AD5195
  • Certifire approved product certificate CF5294
  • CPR declaration of performance certificate: DOP-SHL-DC56.
  • The S600 can satisfy the open force recommendations for BS8300 and ADM when installed in fig 1 to a minimum  door width of 796 mm in power size EN3 according to third party data. However other installed  hardware, door seals and differential air pressure will affect the products as installed performance meaning that the door closer alone cannot allow compliance to BS8300 and ADM.
  • Available in Silver, Satin Stainless, Polished Stainless, Polished Brass, Satin Brass, Antique Brass, Polished Copper, Satin Copper, Black, RAL Colours, wide range of Bronze Finishers.

Technical Information to download:
S600 Maintenance Instructions
BS EN1154 Classification Coding Diagram
S600 Line Drawing
S600 Fixing Instructions
S600 Fixing Template in Figure 1
S600 Fixing Template in Figure 6
S600 Synergy Catalogue Page



Similar products can be found in these categories:
Door Closers >Medium Duty Door Closers > Size 2 - 4 Overhead Fire Door Closers with Backcheck
All Synergy Hardware Products
Accessories:
Synergy Parallel Arm Bracket for Door Closer Satin BrassSynergy Parallel Arm Bracket for Door Closer Satin Brass£7.50 Inc VAT   £6.25 Ex VAT
