Worktop Jig Trend KWJ650 Kitchen 650mm

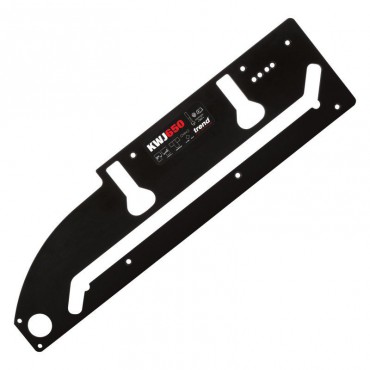

Trend Kitchen Worktop Jig 650mm.

Product Reference: KWJ650

Tradesman work top jig for up to 650mm worktops.

• Hard wearing CNC machined Compact Grade High Pressure Laminate 12mm thick jig that cuts both parts of the joint in 15 minutes including setting up.
• Left hand and right hand corners, 400mm radius peninsular joint, 35mm kitchen door hole.
• Fixed lengths for 600mm, 616mm, 635mm and 650mm wide worktops.
• Cuts up to 40mm thick worktops with or without anti-drip postformed edge.
• Two open ended bolt recesses (dog bone style) for 150mm bolts.
• 10mm diameter plastic pins with tapered shoulder for tight fit provides three point pin contact to ensure ease of setting up.
• Pins made from ABS plastic for strength.

Jig requires:

• A portable plunge router with 12.7mm (1/2 inch) shank capacity and minimum 1300 watts.
• A template guide bush with 30mm outside diameter ref. GB30.
• A TCT router cutter with 12.7mm (1/2 inch) diameter and 50mm (2 inch) cut length.
• Two clamps.

Dimensions:
Length=880 mm
Width=233 mm
Thickness=12 mm
Weight=3.3kg
Female cut material width loss (inset)=33 mm
Curved Peninsular Radius=400mm
Bolt recesses=2
Jig Requirements
Guide bush=30 mm
Plunge router=1/2-inch (min. 1300 watts)
Cutter=12.7 mm x 50 mm cut
Clamps=Two
