The JEFLOCK Accessible toilet lock is designed specially to comply with the Equality Act new legislation formerly known as Part M, DDA & BS8300 etc.
The accessible toilet lock operates from the outside with a lever handle to release the roller latch bolt & has a red & white indicator release, in an emergency the coin release can be turned to release the dead bolt. The outside operation is no different to any other bathroom lock & does not require instructions. The inside lever handle presses down to release the latch bolt & lifts up to throw the dead bolt as illustrated this is an unusual feature & therefore has a sign to read “lift handle to lock” this message is repeated in Braille.

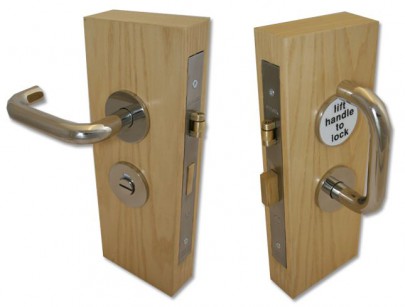

The unique JEFLOCK Accessible toilet lock comes in a complete set as shown in the images.
Polished Stainless Steel
Satin stainless steel forend & strike plate. Roller bolt latch (less likely to cause injuries or damage to clothing than a normal latch bolt). Separate deadbolt with 78mm centres and 57mm backset
All metal finish lever handles are 19mm diameter.
Bolt through Secure Fixings
Black letters on white background and Braille to read "lift handle to lock"
Double lipped strike plate for double action doors
Other finishes available:
All Normbau standard colours plus 5 additional Antibac colours.
Satin stainless steel SSS, Polished stainless steel PSS, Brass, Bronze IBMA
