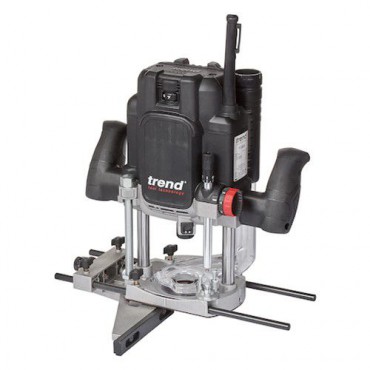

Trend Router Power Tool T12EK 240volt 1/2 Inch 2300W Variable Speed & Kit Box.
Product Reference: T12EK
Trend high-performance trade-focused plunge router with advanced safety features, engineered to deliver reliable, fast, accurate cuts. Powerful 2300W Motor delivers consistently high power, torque and speed, and features soft-start to prevent kick-back. 80mm Plunge Depth is deal for deep cutting applications. Perfect for lock jigs, worktop joints and timber profiling.
Trend Base Configuration features a unique precision guide bush centring device to ensure perfect concentricity between cutter and collet for pinpoint accuracy when used with Trend routing jigs.
- Auto-Lock Plunge Lever allows users to quickly, accurately and safely reposition the plunge position without releasing the handles.
- Automatic Power Shut-Off prevents the router from accidental start-up if the trigger lock-on switch is engaged, and the power supply is lost and restored or interrupted.
- 7-Level Variable Speed Control ranges from 9,000 to 22,000rpm, giving the user total control across a range of cutters, materials, and applications.
- Top-Mount Cyclone Extraction with enhanced dust adapter efficiently clears debris to give users 360¡ visibility and prevent extraction hoses from ÔsnaggingÕ.
- Ergonomic Inclined Handles support a natural wrist position, reduce strain, and increase control when routing with arms outstretched.
- Quick-Set Depth Post with rack & pinion 1.0mm indexed increments and zeroing function for fast, easy adjustment.
- Micrometer Fine Height Adjuster features 0.1mm increments and an easy-to-read display for precision depth adjustment.
- Integrated Power Trigger prevents accidental movement and kick-back when turning the router on and off.
- Micro-Adjustable Side Fence with adjustable facings and 0.1mm increments for accurate edge rebating, grooving and moulding.
- Automatic LED Work Lights allow users to accurately position the cutter prior to engaging the material and making costly errors in low-light situations.
- Phosphor Bronze Bushings are corrosion resistant, durable and self-lubricating to prevent racking and deliver a smooth, accurate plunge action.
- Anti-Scratch Base Plate Low-friction, screw-mounted, replaceable phenolic base plate
- Integrated Router Rest provides users with a safe way of changing cutters whilst preventing debris from entering motor vents.
- Wide Base Aperture to suit large profile and jointing cutters.
- ER Style Collet features a double-locking safety feature to prevent accidental cutter ejection and a multi-slit profile for concentric clamping to the cutter shank.
- 3-Position Rotating Turret is used to pre-set plunge depth limits for fast, repeatable batch and stepped cutting.
- Plunge Depth Limiter is easy to set and prevents over-cutting.
- Spindle Lock for quick and easy router cutter changes.
Plunge stroke=0-80 mm
Power input=2300 watt
Collet dia. supplied=1/2 inch
No load speeds=9-22000rpm
Dust spout size ID=35 mm
Guide bush dia. supplied=30 mm
Cutter dia. max.=50 mm hand-held
Base aperture size=70 mm
Rod diameter=10 mm
Rod length=360 mm
Rod centres=100 mm
Sound pressure Lpa=95.1 dB(A)1
Acoustic pressure Lwa=106.1 dB(A)2
Hand arm vibration=<2.1 m/s2
