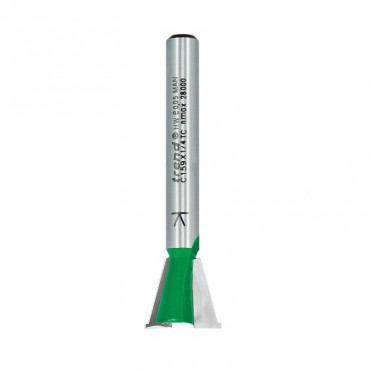

| Product Description: |
To suit user preference, the table shows angles from the horizontal and the profiles show angles from the vertical.
Dimensions:
D=14.3 mm
D2=12.7 mm
C=1/2 inch
C=12.7 mm
OL=52 mm
A=104 degrees
Shank Diameter=1/4 inch
With spurs
For Elu/DeWalt & Titan 11 mm comb
Shank Diameter: 1/4
Diameter Metric: 14.3
Diameter 2 Metric: 12.7
Cut Length Imperial: 1/2
Cut Length Metric: 12.7
Overall Length Metric: 52
Angle: 104 |
