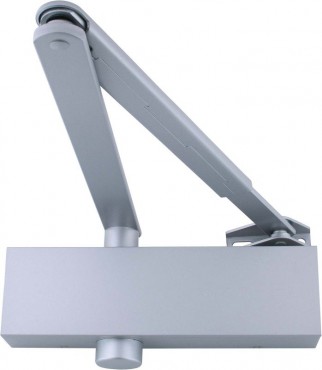

Synergy Door Closer S800 Size 2 - 5 with Backcheck Silver Trimplate

Synergy Door Closer S800 Size 2 - 5 with Backcheck Silver Trimplate

Synergy Hardware
Synergy Door Closer S800 Size 2 - 5 with Backcheck Silver Trimplate£75.22 Inc VAT£62.68 Ex VAT
Product Description:

Synergy Door Closer S800 Size 2 - 5 with Adjustable Backcheck in Silver Trimplate Finish.

Product Reference: S800.SES.MEC

Synergy door closer, power adjustable by spring, with PA bracket included and adjustable backcheck. Suitable for doors up to 1250 mm wide and 100kg maximum weight. Certifire approved.

  • Power Adjustable size 2-5 by spring.
  • Silver Trimplate cover
  • Parallel arm bracket included
  • Suitable for doors up to 1250 mm wide and 100 kg weight when fitted in fig 1 pull and 1100 mm wide and 80 kg in   fig 6 application.
  • Fully tested to the requirements of BS EN 1154.
  • Independent door speed and door latching valves.
  • Certificated for use on latched and unlatched fire doors.
  • Fully adjustable backcheck in both application 1 and 6.
  • For use on single and double leaf doors.
  • Easy installation
  • Very high corrosion protection
  • Fire tested to BS EN 1634 part 1. Assessed for use on 30, 60, and 120 minutes on timber fire doors.
  • CE marked certificate 2812-CPR-AD5196
  • Certifire approved product certificate CF5294
  • CPR declaration of performance certificate: DOP-SHL-DC58.
  • The S800 can satisfy the open force recommendations for BS8300 and ADM when installed in fig 1 to a minimum door width of 836 mm in power size EN3 according to third party data. However other installed hardware, door seals and differential air pressure will affect the products as installed performance meaning that the door closer alone cannot allow compliance to BS8300 and ADM.
  • Available in Silver, Satin Stainless, Polished Stainless, Polished Brass, Satin Brass, Antique Brass, Polished Copper Satin Copper, Black, RAL Colours, Wide range of Bronze Finishers.

Technical Information to download:
S800 Maintenance Instructions
BS EN1154 Classification Coding Diagram
S800 Line Drawing
S800 Fixing Instructions
S800 Fixing Template in Figure 1
S800 Fixing Template in Figure 6
S800 Synergy Catalogue Page
