Lift to Lock Disabled Bathroom Lockset in Powder Coated White Finish
Product Reference: LIFLOC-PCW

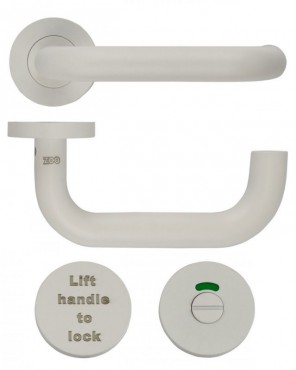

The complete Lift to Lock disabled facility lockset. Each set includes the Din standard lock case, powder coated white safety door lever handles, an engraved instruction escutcheon and a turn and coin release indicator.
External / Outside
The roller latch bolt is operated externally with one half of the unsprung lever handle set to release the roller latch bolt as normal. Fitted to the face of the door underneath the lever handle is the coin release and indicator, this operates in the same manner as bathroom type coin releases.
Internal / Inside
The internal side of the lever handle set is configured so that the latch bolt follower is blanked off with an engraved escutcheon. The deadbolt follower uses the second half of the lever handle, and by throwing the handle up operates the deadbolt and locks the door. By operating the handle in the usual manner and pushing down, first the deadbolt is withdrawn, then by pushing the lever further downwards the roller latch bolt is withdrawn allowing exit of the room.
The Lift to Lock Set includes:
- 1 pair of unsprung lever handles
- 2 x 8mm spindles
- Bolt through fixings
- Release / status indicator
- "Lift Handle To Lock" engraved escutcheon
Powder Coated White
60mm Backset, 72mm Centres
Lever Door Handles:
19mm Safety Return to Door style
10 year manufacturers mechanical guarantee on the lock case
Click here for technical specification sheet - PDF Data Sheet
