Trend Lock Jig LOCK/JIG

Trend Lock Jig LOCK/JIG

Trend Routing Technology

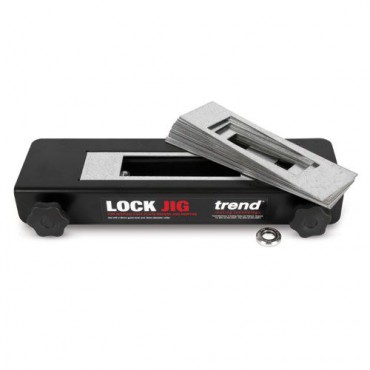

Click For Bigger Image: Trend Lock Jig and templates.Click For Bigger Image: Trend Lock Jig with a template.Click For Bigger Image: The final application using the Trend Lock JigClick For Bigger Image: Trend Lock Jig on a hung door.
Click For Bigger Image: Trend Lock Jig in use on a white door.Click For Bigger Image: Trend Lock Jig in use ona wooden door.Click For Bigger Image: The finished product when using a Trend Lock Jig.Click For Bigger Image: Example locks and latches suitable with the Trend Lock Jig.
Click For Bigger Image: A heavy duty router for use with the Trend Lock Jig.Click For Bigger Image: A medium duty router for use with the Trend Lock Jig.Click For Bigger Image: The guide bush collar you get with the Trend Lock Jig.Click For Bigger Image: The templates you get with the Trend Lock Jig.
Trend Lock Jig LOCK/JIG£109.04 Inc VAT£90.87 Ex VAT
Product Description:

The Trend Lock Jig

Product Reference: LOCK/JIG

This jig uses a set of interchangeable templates and with a router will cut the mortise and face-plate recess for popular door locks.
  • For most common sash mortises & dead locks, with up to 3 inch deep mortises & a 7/8 inch or 1 inch face-plate.
  • Deeper mortises can be achieved with a suitable size of auger bit.
  • Fast, clean & accurate results on doors 34mm to 58mm thick, even in hardwood.
  • Steel plates & body.
  • The jig requires a plunge router with a 80mm plunge, fitted with a 30mm guide bush with 6mm spigot & 12mm diameter long reach cutter.
Comes with:
  • 1 x Guide Bush Collar
  • 12 x Face Plate Templates
  • 4 x Mortise Templates
  • 6 x Spacer Fingers
Dimensions:
Door thickness min. = 34 mm
Door thickness max. = 58 mm

Includes templates for locks having the following face-plate dimensions:
Imperial (Metric) = Template
7/8"x 1/8" (22.2x156 mm) = 1
7/8"x 6 " (22.5x152.5 mm) = 2
1"x 4 3/4" (25.4x121 mm) = 3
1"x 5" (25.4x127.5 mm) = 4
1"x 5 1/4" (25.4x133.5 mm) = 5
1"x 5 3/4" (25.4x145 mm) = 6
1"x 6" (25.4x153 mm) = 7
1"x 6" (25.4x156.5 mm) = 8
1"x 6 1/2" (25.4x165.5 mm) = 9
1"x 7" (25.4x177 mm) = 10
1"x 2 1/4" (25x57.5 mm) = 11 UPPER
1"x 2 1/4" (26x56.5 mm) = 11 LOWER
1"x 6 3/8" (25.6x162mm) = 12

Mortise Dimensions:
Imperial (Metric) = Template
5/8" x 2 7/8" (16x72 mm*+) = A
5/8" x 4 1/4" (16x107 mm*) = B
3/4" x 3 1/8" (19x78 mm*) = C
3/4" x 4 1/4" (19x109 mm*) = D
*These are maximum mortise length, unless radius ends are squared with a chisel.
+Note:actual size of mortise 16x79 mm (5/8" x 3 7/64")

Click here to see all Lock Jig Templates.
How To Use The Trend Lock Jig.
