Trend KWJ700/PRO Professional 700mm Worktop Jig

Trend KWJ700/PRO Professional 700mm Worktop Jig

Trend Routing Technology
Trend KWJ700/PRO Professional 700mm Worktop Jig£169.41 Inc VAT£141.18 Ex VAT
Product Description:

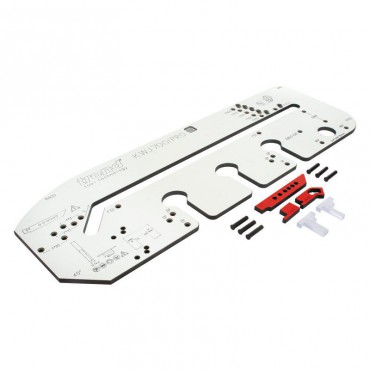

Trend KWJ700/PRO Professional 700mm Worktop Jig.

Product Reference: KWJ700/PRO

A universal worktop jig for routing mitre joints in laminated, timber and compact laminate surfaces. Features 3mm, 10mm and 35mm inset options, and innovative front edge alignment technology for scribed, out-of-square and non-standard worktop widths.

  • Front Edge Alignment Technology* accurately positions the jig directly to the start of the mitre joint to accommodate any worktop width.
  • Narrow Inset T-Gauges create 3mm and 10mm insets quickly and easily. Perfect for square-edged and modern bullnose worktops; narrow insets give a cleaner aesthetic, prevent cutter wear, and improve cordless router runtime.
  • Male Cut-Line Positioning Devices* allow the jig to be positioned directly to the male cut line and remove the need for complex length, angle and offset calculations. Ideal for trapped and out-of-square installations.
  • Preset Connector Bolt Recesses accommodate all standard worktop bolt sizes, including Zipbolt and Unika ÔSlimlineÕ connection bolts.
  • Indexed Backsets for 600, 610, 616, 620, 635, and 700mm worktops for standard 90¼ installations.
  • 400mm Radius for breakfast bar and peninsula trimming.
  • R100mm, R40mm and 45¡ Corners for edge finishing.
  • 90¡ Straight Cuts for accurate skimming and trimming.
  • 35mm Hinge / ?Ó BSP Recess for surface-mount monobloc tap and concealed hinge installation.
  • CNC-Machined Compact Grade HPL provides precision, strength and durability
  • 8mm Radius Gauge ensures worktops are suitable for a 10mm narrow inset.
  • 8.65mm Marking Gauge helps to perfectly position the jig for peninsula, radius and 45¡ corner finishing.


Dimensions:
Length=1010 mm
Width=340 mm
Thickness=12 mm
Weight=5.5 kg
Insets=3/10/35 mm
Backsets=600/610/616/620/635/700 mm
Bolt Recesses=3
Bolt Recess Centres=175 mm
Corner Radius=40/100 mm
Peninsular Radius=400 mm
Requires:
Guide Bush=30 mm
Router Cutter=12.7mm dia. x 50 mm length
Plunge Router=1/2inch
F-Clamps=min. 80 mm throat x 2
