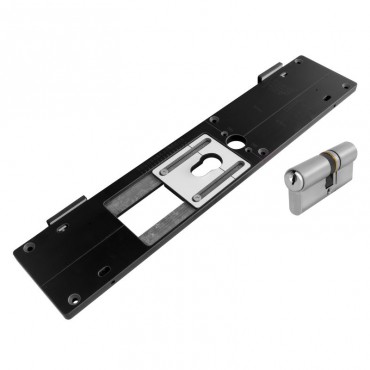

Trend Euro Cylinder Lock Jig.
Product Reference: ECL/JIG
Trend routing jig to cut a hole suitable for Euro Cylinder Locks. Routs out recess to suit Euro lock cylinder size 33mm x 17mm/10mm. Sliding plate allows handle pitch to lock body adjustment from 45mm to 115mm.
- 44mm and 57mm backset.
- Jig is designed to give a 1mm clearance around the barrel.
- Allows 16mm diameter hole for handle spindle to be routed.
- Holes for use with 2.75mm diameter Trend Snappy drill bit guide for marking handle lock plate at 40mm centres.
- Made from 12mm thick High Pressure Laminate for longer life.
- Long rotating edge stops for use with 44mm doors with leading edge.
- Reversible design.
- Accessory sliding plates available for small oval and large oval cylinder locks.
- Requires plunge router, 12mm diameter cutter and 20mm diameter guide bush.
Dimensions:
Size=490 mm x 101 mm
Lock hole size=33 mm x 17/10 mm
Finished hole size=35mm x 19/12 mm
Backset=44 mm & 57 mm
Handle spindle hole=16 mm
|
