Trend H/Jig/A Contractor Hinge Jig Two Part with Case

Trend H/Jig/A Contractor Hinge Jig Two Part with Case

Trend Routing Technology

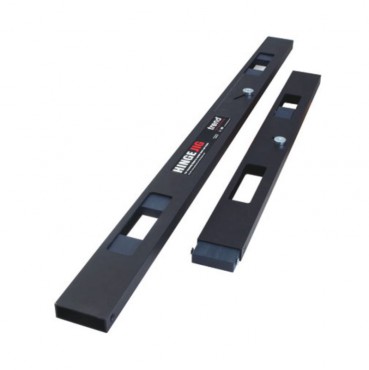

Click For Bigger Image: Trend Door Hinge Router Jig Mortise H/JIG/A
Trend H/Jig/A Contractor Hinge Jig Two Part with Case£264.69 Inc VAT£220.58 Ex VAT
Product Description:

Trend Two Part Contractors Hinge Jig A with Carry Case.

Product Reference: H/JIG/A

The Hinge Jig is a portable template set designed for recessing hinges in wooden doors & frames. It is easy to use with minimal setting-up time, completing the job both accurately & quickly. Used on-site & in joinery shops to increase productivity with excellent results.

  • Four apertures for fire door requirements.
  • No need for marking out in the conventional way.
  • Quick & simple to set-up as the hinge is used as the pattern.
  • Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges.
  • Use with a light duty plunge router with 1/4 inch collet.
  • Long reach router cutter required, 12mm diameter with 70mm overall length.
  • Angled position slots to prevent creep.
  • Unibase may be needed.

T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160.

Dimensions:
Jig overall length=1957 mm
Weight=3.3 kg

Hinge sizes possible
Length min.=2 5/8" (67 mm)
Length max.=5" (127 mm)
Width min.=3/8" (9.5 mm)
Width max.=1 3/8" (35 mm)

Door sizes possible
Height min.=6' 5" (1955 mm)
Height max.=2100 mm*
Thickness min.=5/8" (16 mm)
* Please note for doors over 2040mm the bottom hinge will be higher than 9" up.

Similar products can be found in these categories:
Trend Woodworking Tools >Trend Router Jigs > Trend Hinge Jigs
Power Tools & Accessories >Router Jigs & Tables > Hinge Jigs
All Trend Routing & Woodworking Products
Accessories:
Trend C/Chisel Corner ChiselCorner Chisel Trend C/Chisel£21.58 Inc VAT   £17.98 Ex VAT
