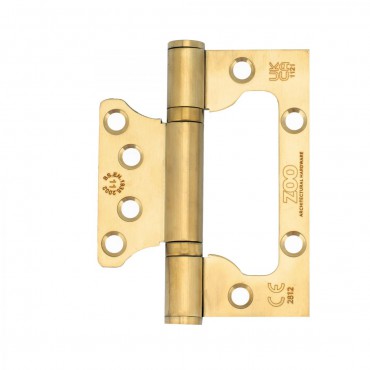

Zoo Hardware Grade 11 Flush Hinges ZHSSFH-243S-PVDSB Satin Brass Pair

Zoo Hardware Grade 11 Flush Hinges ZHSSFH-243S-PVDSB Satin Brass Pair.

Product Reference: ZHSSFH-243S-PVDSB

The new ZHSSFH-243 series uses a concept commonly used with cupboard or cabinet doors, otherwise known as an interleaf hinge, to offer a unique flush design for full size internal residential door sets. The design removes the need for morticing into a door leaf or frame with a more traditional butt hinge, whilst also eliminating the  need for intumescent material, if the hinge is being fitted to a fire rated door.

Successfully tested in accordance with the requirements of BS EN 1935:2002 grade 11, the ZHSSFH-243 series is CE and UKCA marked, and is suitable for use on internal residential non-fire-rated or 30-minute fire rated timber fire doors, weighing up to 80kg.

KEY FEATURES

• Dimensions: 100 x 79 x 3mm
• Stainless Steel
• Requires no morticing into door or frame
• No intumescent needed for use on fire rated doors
• Successfully tested in accordance with the requirements of BS EN1935:2002, Grade 11
• Successfully fire tested in accordance with the requirements of BS EN 1634-1, suitable for use on 30-minute timber fire doors
• UKCA & CE Marked
• ZHSSFH Data Sheet
